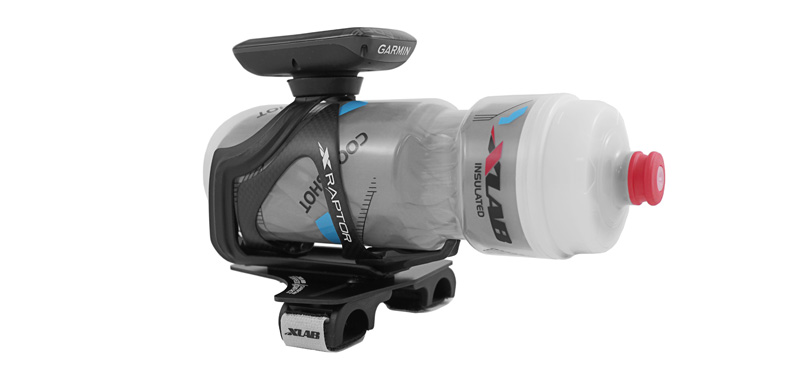

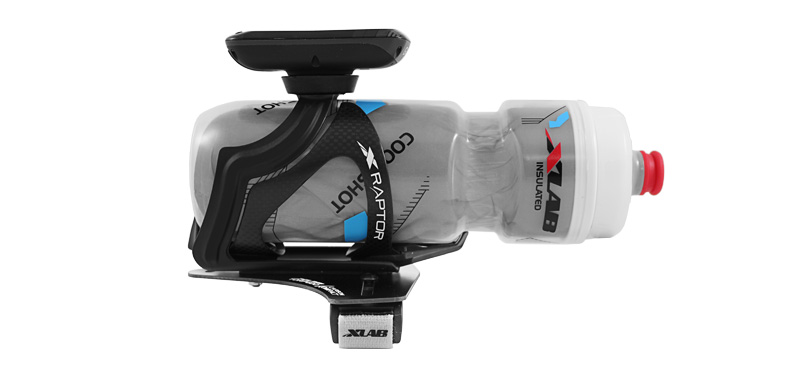

Torpedo Kompact 500

Standard Kompact Features

All Inclusive System

• Comes with everything you need – mounting plate, GARMIN^®-specific computer mount, cage and bottle

No-Fuss Installation

• Torpedo Kompact 500 comes fully assembled
• No Zip-ties, rubberbands or need to concoct your own mounting solution required – simply click-on and Velcro-down

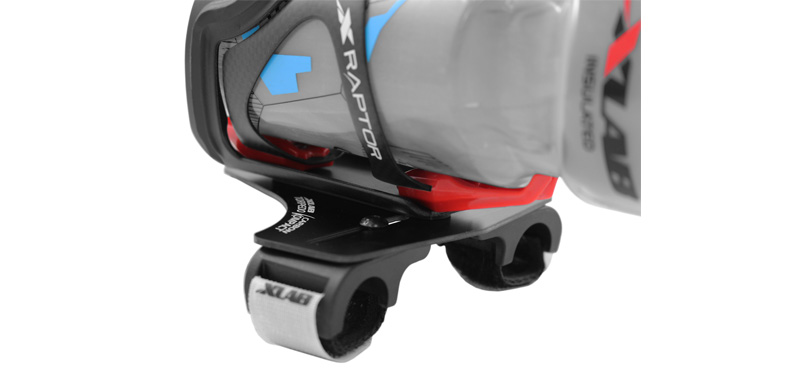

• XLAB SecureClip™ brackets eliminate rattling and shifting. Fits 22.2 mm diameter aerobar extensions. If your bars are oversized we can custom make special oversized clamps. Contact This email address is being protected from spambots. You need JavaScript enabled to view it.
• Megadjust™ means the widest adjustment range available, fitting aerobars 70 mm-150 mm (center-to-center) apart

Data Right Where You Need It

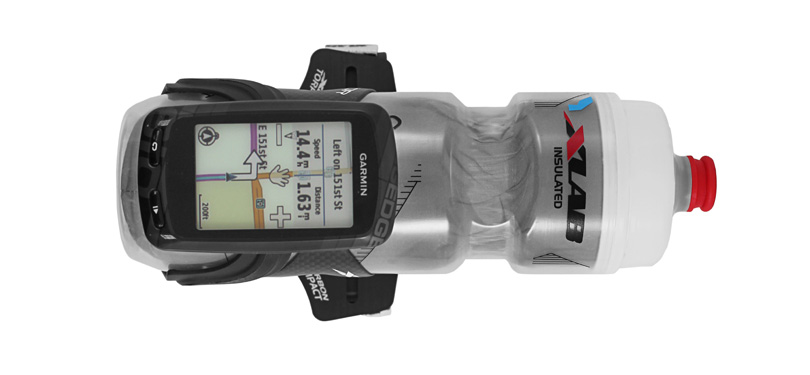

• Designed for easy placement of GARMIN^® bike computers, GARMIN^® Forerunner and fenix watches w/ Simple Quarter Turn interface (check Compatibility tab for specifics)

Rear Offset Design

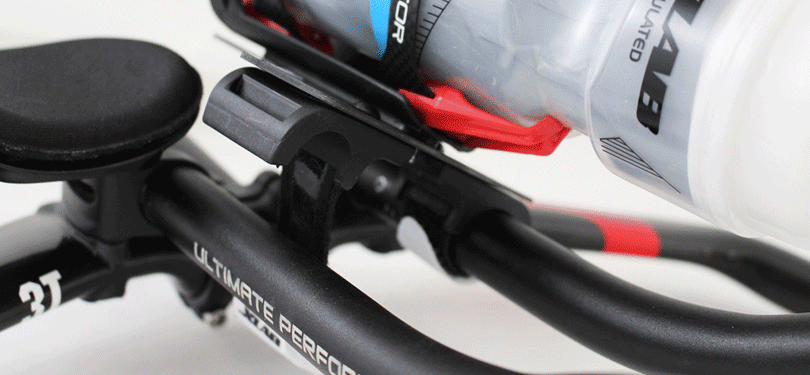

• While bulkier systems limit hand placement and force your hands into limited pockets – the short, compact design (just 145 mm / 5.7 in) clears the aerobars for more, comfortable hand positions
• Perfect for shorter aerobars – rear offset design moves bottle weight over stem and doesn’t require a significant amount of space from your aerobars
• Improves bike handling compared to systems that load weight onto aerobars

Exclusive 500 Series Features

High-Modulus, Unidirectional Carbon Fiber Mounting Plate

Kit-Match with a Color Customizable Cage

• Color match your bike kit with your choice of three optional interchangeable RAPTOR TALONS. Available in White, Orange and Black

Insulated Bottle

• Hyper-reflective Cool Shot insulated bottle keeps liquids super cool

Highest Bottle Grip of Kompact Series

• 6 lbs grip force is durable for rough road conditions: Carbon anti-launch design increases grip force

Compatibility:

Wahoo^®

Capacity:

Includes 20 oz (600 ml) XLAB Cool Shot insulated bottle

Colors:

Assembled with black RAPTOR TALONS. Upgrade to White or Orange purchased separately.

Adjustment Range:

70 mm-150 mm (center-to-center)

Weight:

154.4 g (without bottle or computer)

Length:

145 mm

Bottle Grip Force:

7 lbs

Construction

Bottle: Lead free, BPA-Free and HDPE food safe certified bottle
Mounting Plate: Carbon
Cage: Carbon chassis, polycarbonate RAPTOR TALON cage ends
Brackets: Nylon Composite with Velcro Straps coated with no-slip extension grip. Fits 22.2 mm diameter aerobar extensions. If your bars are oversized we can custom make special oversized clamps. Contact This email address is being protected from spambots. You need JavaScript enabled to view it.

Warranty:

2 Year Limited Warranty

Computers

The following computers and multisport watches are compatible with the Garmin^® and Wahoo^® mount on the system:
Garmin^®:

• Garmin^® Edge Series

Wahoo^®:

• Elemnt
• Elemnt Bolt
• Elemnt Mini

Hamerhead^®:

• Karoo 2 (must purchased Karoo 2 Quarter-Turn Mounting Adapter from Hammerhead^®)

The following computers will fit if separate Polar^® or Strap-mounted adapters are purchased:
Polar^®:

• V650
• M460

Cateye^®:

• Strada Wireless
• Stealth GPS

Cycleops^®:

• Joule
• Joule GPS
• Joule – 1st generation
• PowerTap LYC

Sigma^®:

• Cyclometer Wireless

Timex^®:

• Cycle Trainer 2.0

Installation Instructions

Download a (PDF) of the Torpedo Kompact 500 Instructions

Torpedo Computer Adapter
Modify your KOMPACT 500 to mount more than just Garmin^® computers and watches! Switch out the mount insert for a Wahoo^®, Polar^® or Universal strap-mounted bike computers such as Cateye^® or Sigma^®.

Versa Custom Clamps
We can make special clamps for oversized aerobar extensions. If your bars are over 22.2 mm in diameter, Contact us!
