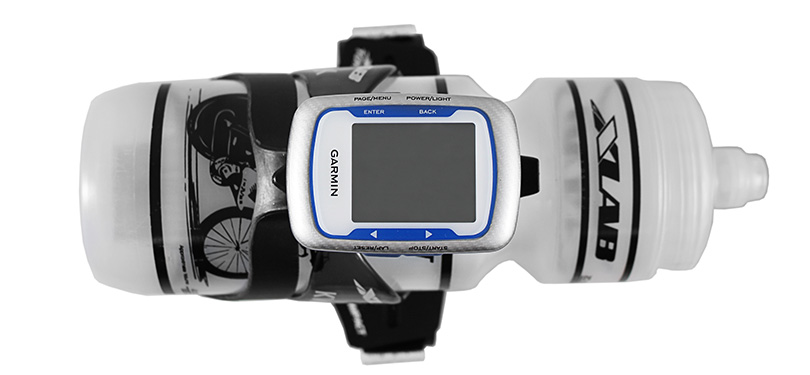

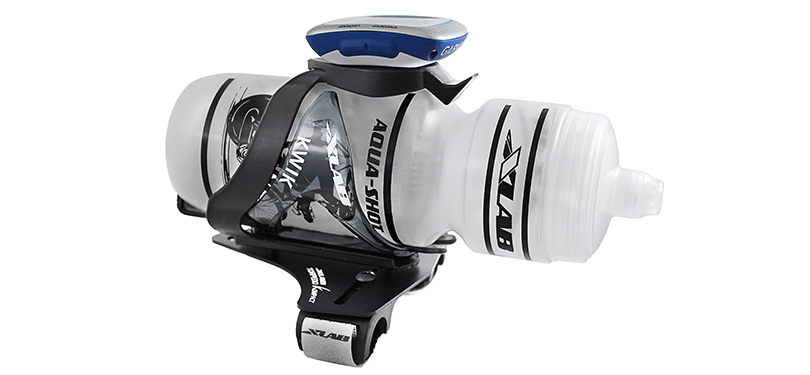

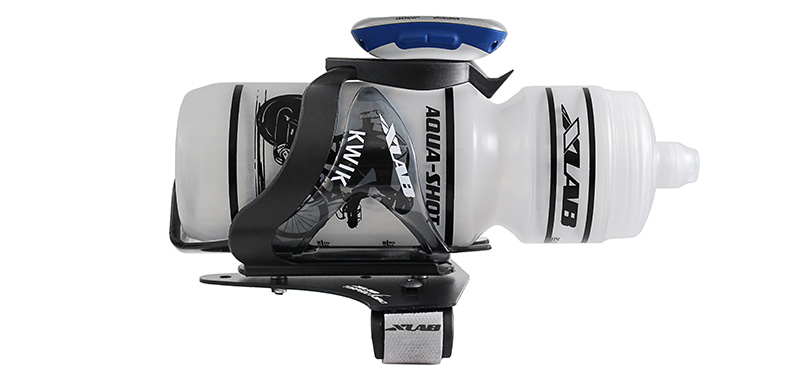

Torpedo Kompact 100

Simple, easy-to-install aerobar hydration system – just clip -on, fill-up and go!

  • WINNER: 2016 Triathlete Magazine 'Best in Class' Award
  • SecureClip™ Brackets Install in an Instant: No ugly cable-ties, rubberbands or electrical tape needed to secure system: SecureClip™ brackets simply clip on and Velcro down to aerobars
  • Megadjust™ Adjustment: Wide adjustment range fits aerobars 70mm-150mm (center-to-center) apart
  • Just add your choice of beverage: Includes XLAB Aqua-Shot bottle
  • No launch, high-grip design holds bottles tight - yet bottle insertion and removal is easy
  • Also available in carbon: TORPEDO KOMPACT 500

All Inclusive System

Torpedo Kompact
  • Comes with everything you need – mounting plate, GARMIN-specific computer mount, cage – and XLAB Aqua-Shot water bottle

No-Fuss Installation

  • Torpedo Kompact 100 comes fully assembled
  • No Zip-ties, rubberbands or need to concoct your own mounting solution required – simply click-on-and-Velcro-down
  • XLAB SecureClip™ brackets eliminate rattling and shifting. Fits 22.2mm diameter aerobar extensions. If your bars are oversized we can custom make special oversized clamps. Contact sales@xlab-usa.com
  • Megadust™ means the widest adjustment range available, fitting aerobars 70mm-150mm (center-to-center) apart

Data Right Where You Need It

  • Designed for easy placement of GARMIN bike computers, GARMIN Forerunner and fēnix watches w/ simple Quarter Turn interface (check Compatibility tab for specifics)

Rear Offset Design

  • While bulkier systems limit hand placement and force your hands into limited pockets – The short, compact design (just 145mm/5.7in) clears the aerobars for more, comfortable hand positions
  • Perfect for shorter aerobars – rear offset design moves bottle weight over stem and doesn’t require a significant amount of space from your aerobars
  • Improves bike handling compared to systems that load weight onto the aerobars

Capacity

Includes 25oz (740ml) XLAB Aqua-Shot calibrated bottle

Colors

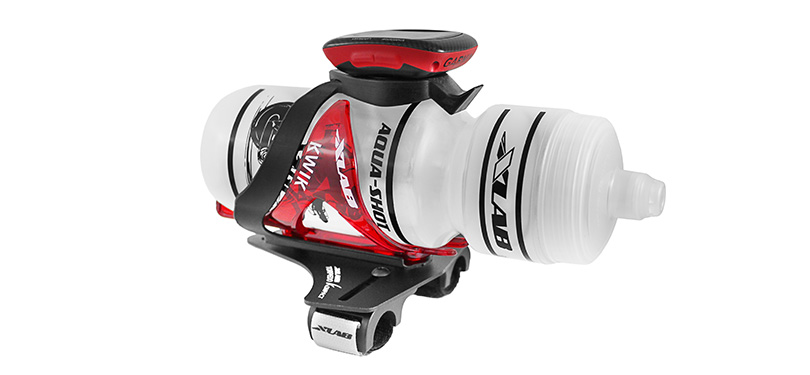

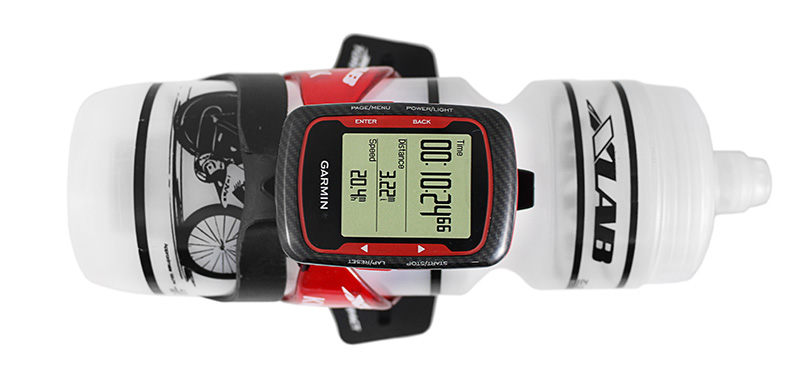

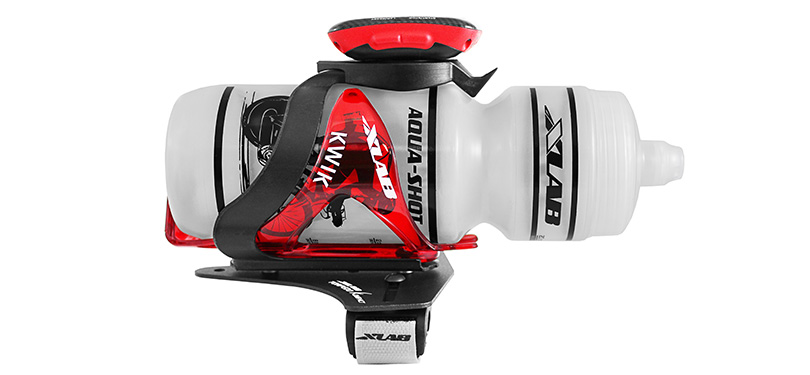

Available with Translucent Black or Translucent Red Cage

Adjustment Range

70mm-150mm (center-to-center)

Weight

8.7oz (247g) including Aqua-Shot bottle (no computer installed), 6.1oz (172g) without Aqua-Shot bottle (no computer installed)

Length

145mm (5.7”)

Construction

Bottle: Lead free, BPA-Free and HDPE food safe certified bottle w/ medical grade silicone valve
Mounting Plate: 6061-T6 Aluminum
Cage: Polycarbonate
Brackets: Nylon Composite with Velcro straps coated with no-slip extension grip. Fits 22.2mm diameter aerobar extensions. If your bars are oversized we can custom make special oversized clamps. Contact sales@xlab-usa.com

Warranty

Because of our engineering and testing for this product, we give it a 2 Year LIMITED Warranty to the original owner.

The following computers and multisport watches are compatible with the GARMIN-specific mount on the TORPEDO KOMPACT 100.

  • Edge 20
  • Edge 25
  • Edge 200
  • Edge 500
  • Edge 510
  • Edge 520
  • Edge 800
  • Edge 810
  • Edge 1000
  • Forerunner 310XT – Need Garmin Quick Release Kit #010-11215-02
  • Forerunner 910XT – Need Garmin Quick Release Kit #010-11215-03
  • Forerunner 920XT - Need Garmin Quick Release Kit #010-11251-48
  • fēnix 3/fēnix 3 Sapphire - Need Garmin Quick Release Kit #010-12168-11

Download the Torpedo Kompact 100 Installation Instructions
Using a Garmin Multisport Watch? Download the Installation Instructions
