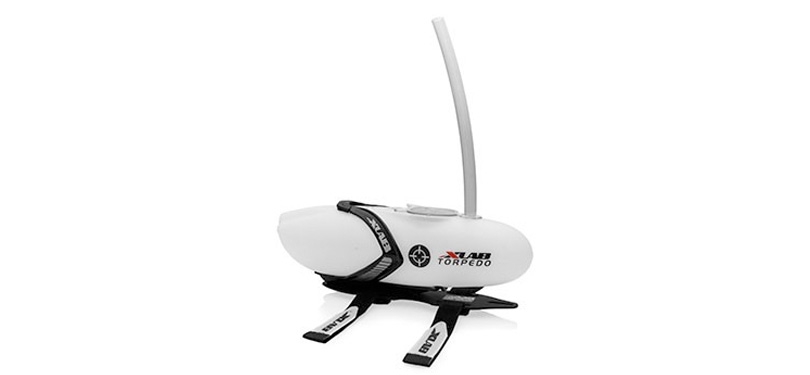

TORPEDO SYSTEM 50

TORPEDO System 50 is the perfect refillable BTA system for the beginner triathlete. No need to grab bottles while riding, risking riding stability. Simply drink from the vertical straw. Not only is it easier to drink, but helps remind you to continually drink to stay hydrated. Horizontally adjustable and super easy to install with no tools required. Now there is no excuse on sacrificing aerodynamics when starting out!

Best starter BTA System
Easy installation, right out of the package
Provides lighter, easier steering for better control
Left & Right handed access for easy refill
Easy to clean & leak-proof

Features Specs Compatibility Tips Installation Reviews

Easy to Drink & Refill

Straw

2 straw positions along with cage & mount adjustments allows for perfect straw location.

Refilling & Replacing Options

Solid Refill Lid is ideal for adding powder, tablets and fluid.
Refill area is located behind the computer allowing you to keep the computer screen if you decide to mount one, clean & clear!
The TORPEDO BOTTLE can be moved to another XLAB cage on your bike so you can use standard bottles or bottles from an aid station.

Bottle Design & Features

One piece body ensures no leaking!
Bottle made in the USA and is lead free, BPA-Free and HDPE food safe certified
TRUE 26 oz bottle capacity (768 mL)

Aerodynamically Invisible

Proven aerodynamically invisible by 5x WORLD CHAMPION Craig Alexander & Mat Steinmetz at the Velodrome, June 2013.

Computational Fluid Dynamic (CFD) airflow optimized and velodrome aero testing approved.
Bottle body design

Contoured design to fit your arm shape.
Small frontal area that allows a clean airflow around the bottle.
Kamm tail. Reduces drag by 50%
Airflow straighteners designed into the bottle to gather airflow for a clean, straight exit air flow.
Flush lid reduces drag.

Ability to have computer mounted in front of the bottle, not on top which increases aero drag.

Easy Computer Viewing

Why mount a computer behind your line of sight? The TORPEDO SYSTEM is designed to have a computer mounted in front of the bottle. Look down with your eyes and not your head! Use the optional, AERO COMPUTER MOUNT, to mount the computer.

Easier to Handle in Winds

The TORPEDO SYSTEM was designed to mount further back allowing easier steering for the rider

Weight is moved back off aerobar extensions. Up to 4 inches (100 mm) of adjustment.
TORPEDO BOTTLE extends uniquely beyond the rear of the cage to help move weight back.

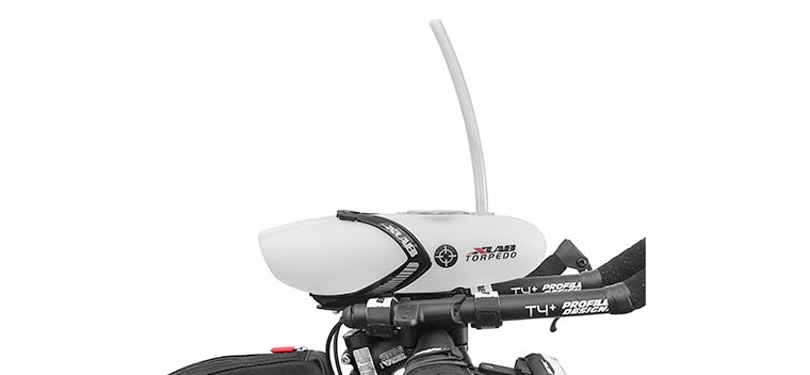

Versatile Sturdy Mounting

When you want a sturdy, reliable hydration source, trust XLAB!

Uses XLAB’s proven 4 Strap System
Fits bars 80mm – 130mm center to center
No tools required for easy removal
Uses the XLAB anti-slip nylon composite "VEE" cage with specially designed rubber retainer.

Ultralight

The XLAB TORPEDO SYSTEM is up to 100 grams lighter than others on the market!
Entire system is only 175 grams

Extremely Inclusive

The TORPEDO SYSTEM comes with a variety of components allowing versatility for any rider!
The entire system includes:

Bottle & Bottle Accessories: Bottle body, Straw, Solid Lid, Spare Straw Hole Plug.
Bottle Cage
Mounting Accessories: Torpedo Mini Mount, 4 XTS Mounting Straps.
All the necessary hardware and detailed installation instructions.

Note: To mount a computer in front of the bottle you must purchase the AERO COMPUTER MOUNT.

We have found the following computers and power meters to be compatible with the TORPEDO SYSTEM. As a general rule, the TORPEDO SYSTEM will fit computers that are smaller than 1 3/8" in length, measured from the center of the mount to the edge of the computer facing the bottle. If yours is not on here or you have questions on compatibility please contact us. Note: Due to extra wire lengths needed, wired computers are not recommended with this system.

Cateye

Strada Wireless
Stealth GPS

Cycleops

Joule
Joule GPS
Joule - 1st generation
PowerTap LYC

Garmin

200
500
510
800/810
1000
310XT – Need Garmin Quick Release Kit #010-11215-02
910XT – Need Garmin Quick Release Kit #010-11215-03
920XT - Need Garmin Quick Release Kit #010-11251-48

SRM

Power Control

Sigma

Cyclometer Wireless

Timex

Cycle Trainer 2.0

Computers that will not work with included Mini Mount and will require a separate computer mount, i.e. barfly-type

Garmin

305
705
Forerunners that require Garmin Bike Mount #010-11029-0

Inserting & removing the bottle

The bottle comes with a secure fit feature preventing the bottle from launching or moving from side to side. The best way to remove the bottle is to twist the bottle clockwise, lift the nose and pull bottle forward out of the cage. To insert the bottle, simply twist the bottle clockwise, push backwards and ensure the rear tab of the cage slides into the bottle recess found at the rear of the bottle. Then ensure the rear cage screw head clicks into the long recess on the bottom of the bottle. Give the bottle a couple test movements and you are good to go! Watch the install video of this.

Straw Tips

Straw Placement: If you want a more vertical straw ensure the bottom of the straw is behind the groove found on the bottom of the bottle inside. For a more angled straw ensure the straw bottom is above this groove.
Straw Plug: Install the plug from the inside of the bottle. Start the plug at an angle and push up around the perimeter of the plug. Ensure the top of the plug is completely through the hole.

Computer Mount Tips - If you decide to mount a computer with the optional AERO COMPUTER MOUNT.

Computer Stability: If your computer vibrates, move the straps forward towards the computer mount for a more stable mount.
Garmin Computers: Use the small O-Ring bands included and criss cross them as in the picture.

FAQs

Mounting
What is the difference between the TORPEDO MOUNT and the Torpedo Mini Mount included in this system? The Torpedo Mini Mount is .5" narrower and 1.75" longer. It also has an extra slot located at the front of the mount, allowing an AERO COMPUTER MOUNT to be installed.
I need the Aero Cage Optimizer for my current Torpedo Cage and mount. Will I need it for this new TORPEDO SYSTEM as well? Probably not. You can adjust the height of the cage via optional aero spacers. The Torpedo Mini Mount provides a lot of fore and aft adjustment as well. The aero spacers can be purchased here

Using the System
Can the TORPEDO SYSTEM be filled with the water bottle handed to you at an aid station without stopping? Yes! The Torpedo System comes with a solid lid which is easy to open allowing you to refill on the fly. For the solid lid, just flip it open, pour your water in, close it and you are good to go!

Compatibility
For all computer compatibility questions, please check out the Compatibility tab.
