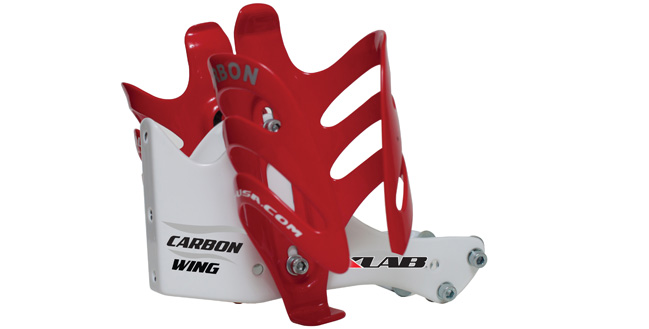

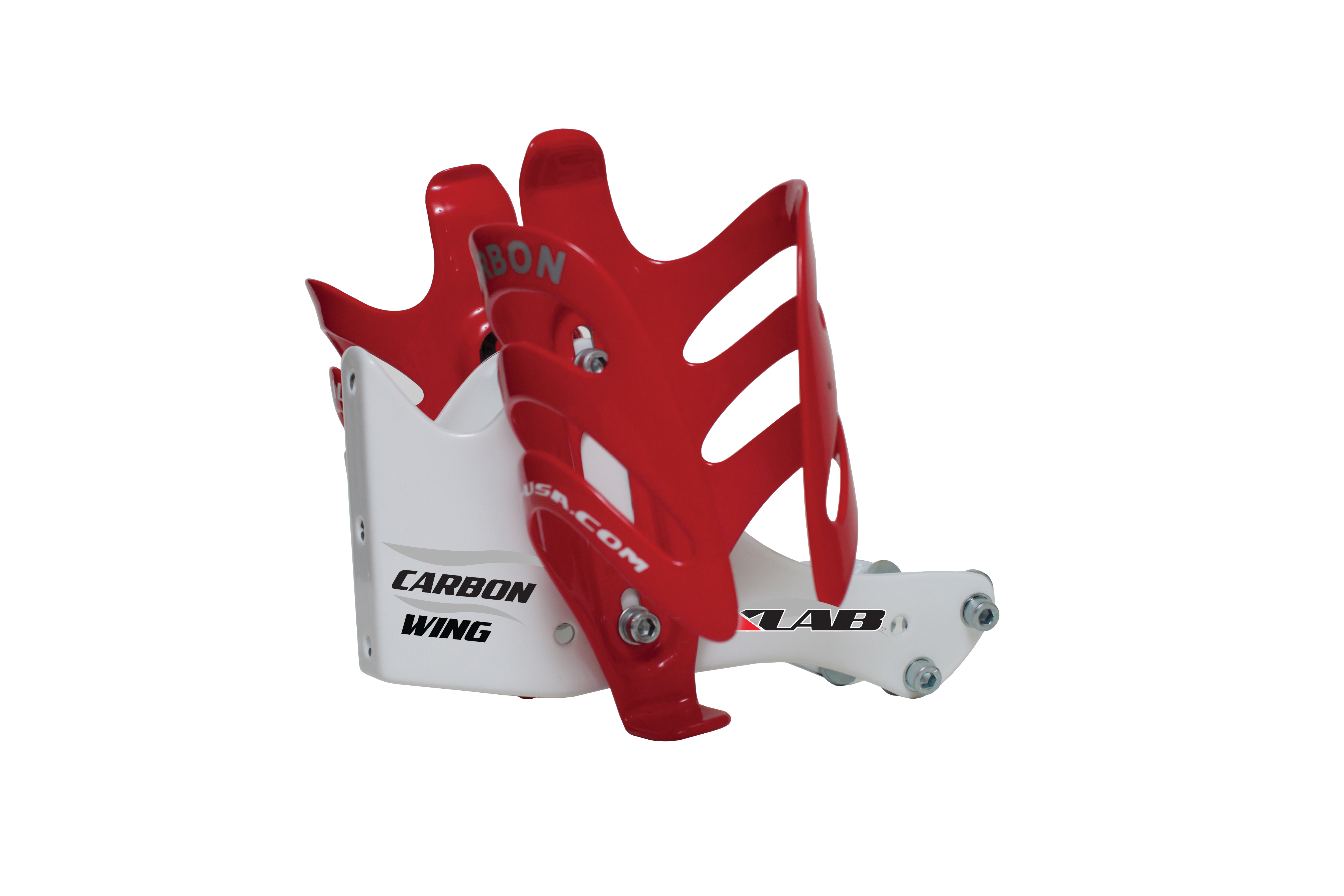

  • Carbon Wing (White) Side View
  • Carbon Wing Back View
  • Carbon Wing Top View
  • Carbon Wing with Optional XLAB Inflation Kit
  • XLAB Carbon Wing with Optional XLAB Mini Bag and Inflation Kit

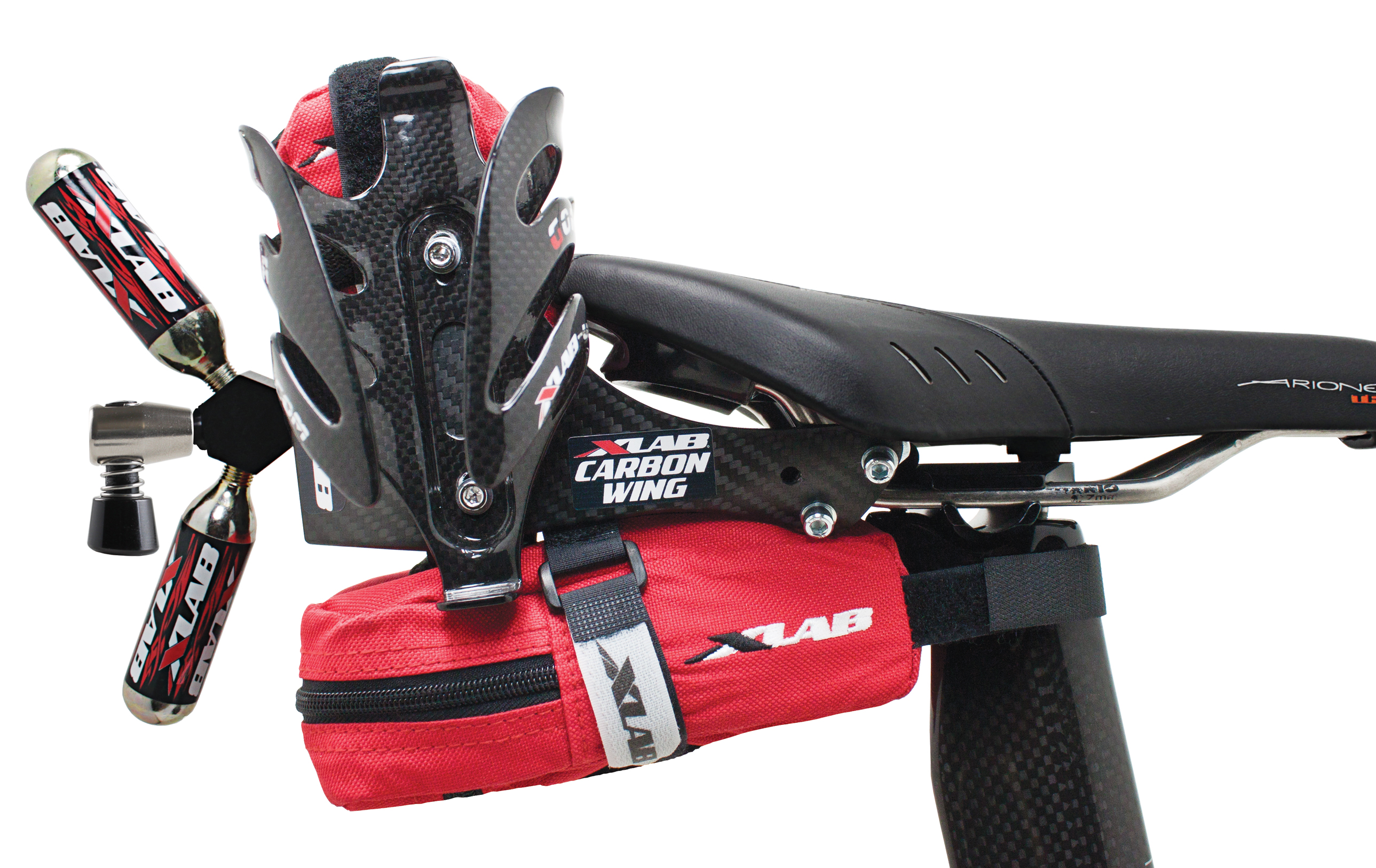

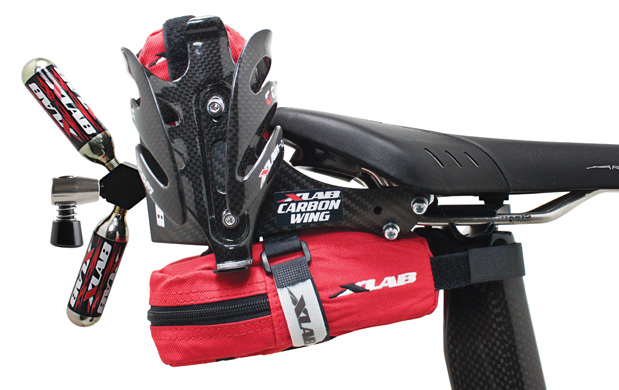

  • XLAB Carbon Wing with Optional XLAB Mini Bag, Gorilla Cage and Inflation Kit
  • XLAB Carbon Wing with Optional XLAB Mezzo Bag, Mini Bag, Gorilla Cage and Inflation Kit
  • 06
  • Carbon Wing (White) Side View
  • Carbon Wing Back View
  • Carbon Wing Top View

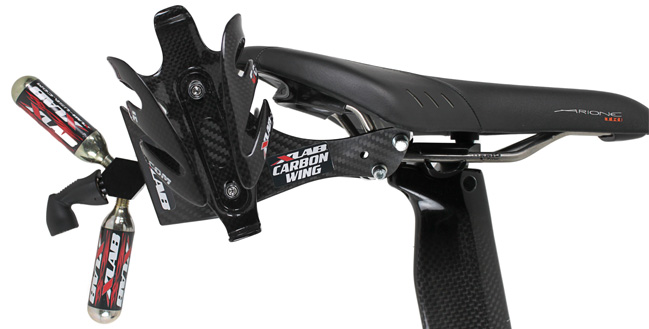

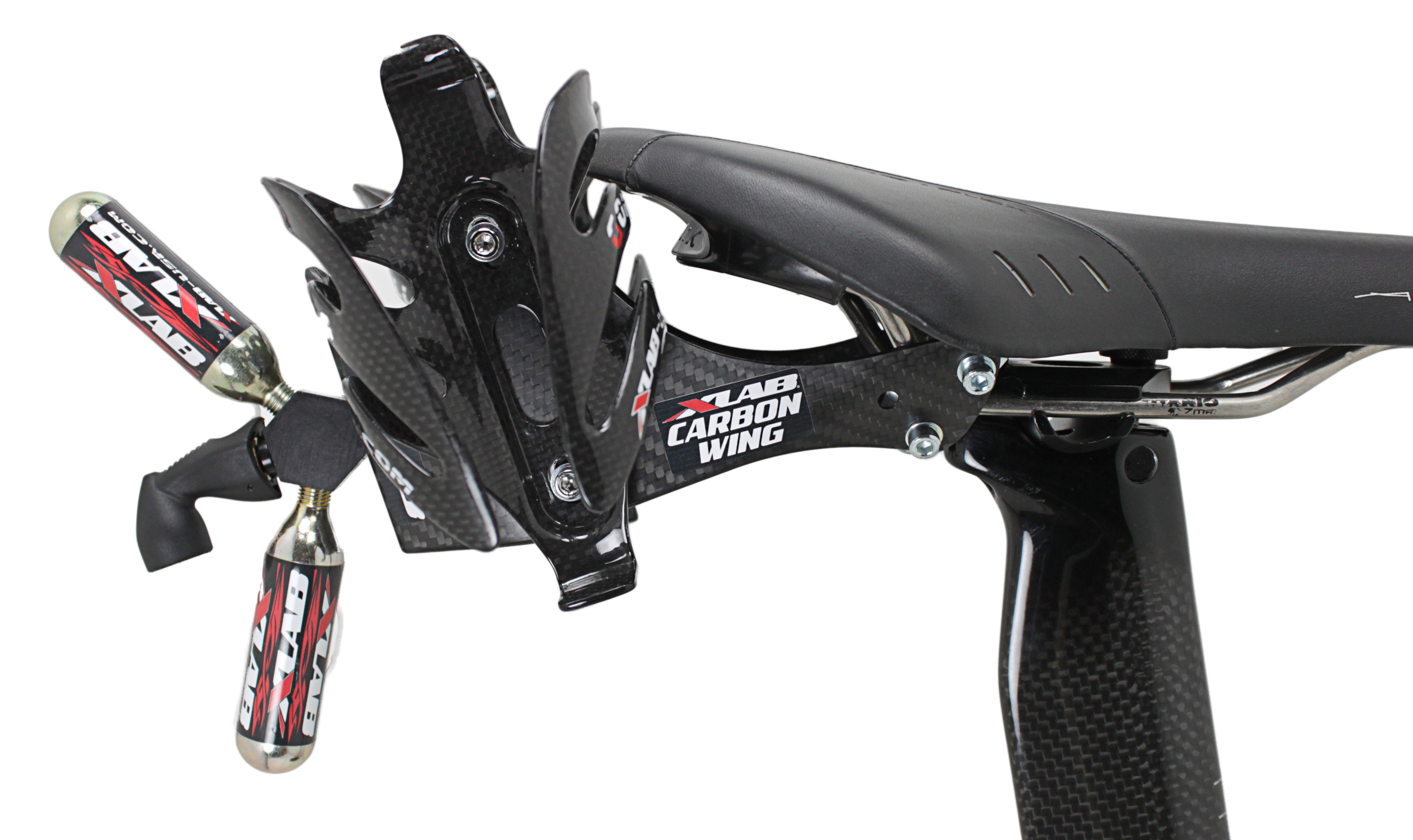

  • Carbon Wing with Optional XLAB Inflation Kit
  • XLAB Carbon Wing with Optional XLAB Mini Bag and Inflation Kit
  • XLAB Carbon Wing with Optional XLAB Mini Bag, Gorilla Cage and Inflation Kit
  • XLAB Carbon Wing with Optional XLAB Mezzo Bag, Mini Bag, Gorilla Cage and Inflation Kit
  • wind-tunel

MULTIPLE WORLD CHAMPIONSHIP WINNER

Watch an introductory video on the CARBON WING

  • SAVE up to 13 secs/40km.
  • LIGHTEST Durable System available
  • 2 MOUNTING POSITIONS
  • 3 BOTTLE CAGE angles
  • INTEGRATED storage/Mini bag area
  • COMPLETE WITH STRAP for bag underneath

Introduction Top

Our Hydration and Repair carriers have often been copied, but like any copy, it is never as good as the original. With over a decade of experience designing these carriers and winning more Ironman Distance World Championships than all our competitors combined, we launched the next generation of XLAB Hydration Carriers. Rear carriers should not interfere with the air on the rider's back, but instead fill in the turbulence 'hole' behind the riders posterior, thereby reducing the rider's drag (which accounts for 64% of energy used on a racing bicycle). XLAB CARBON WING is designed for 7mm metal saddle rails. For carbon rail saddles use the included carbon rail hardware kit.

Storage Top

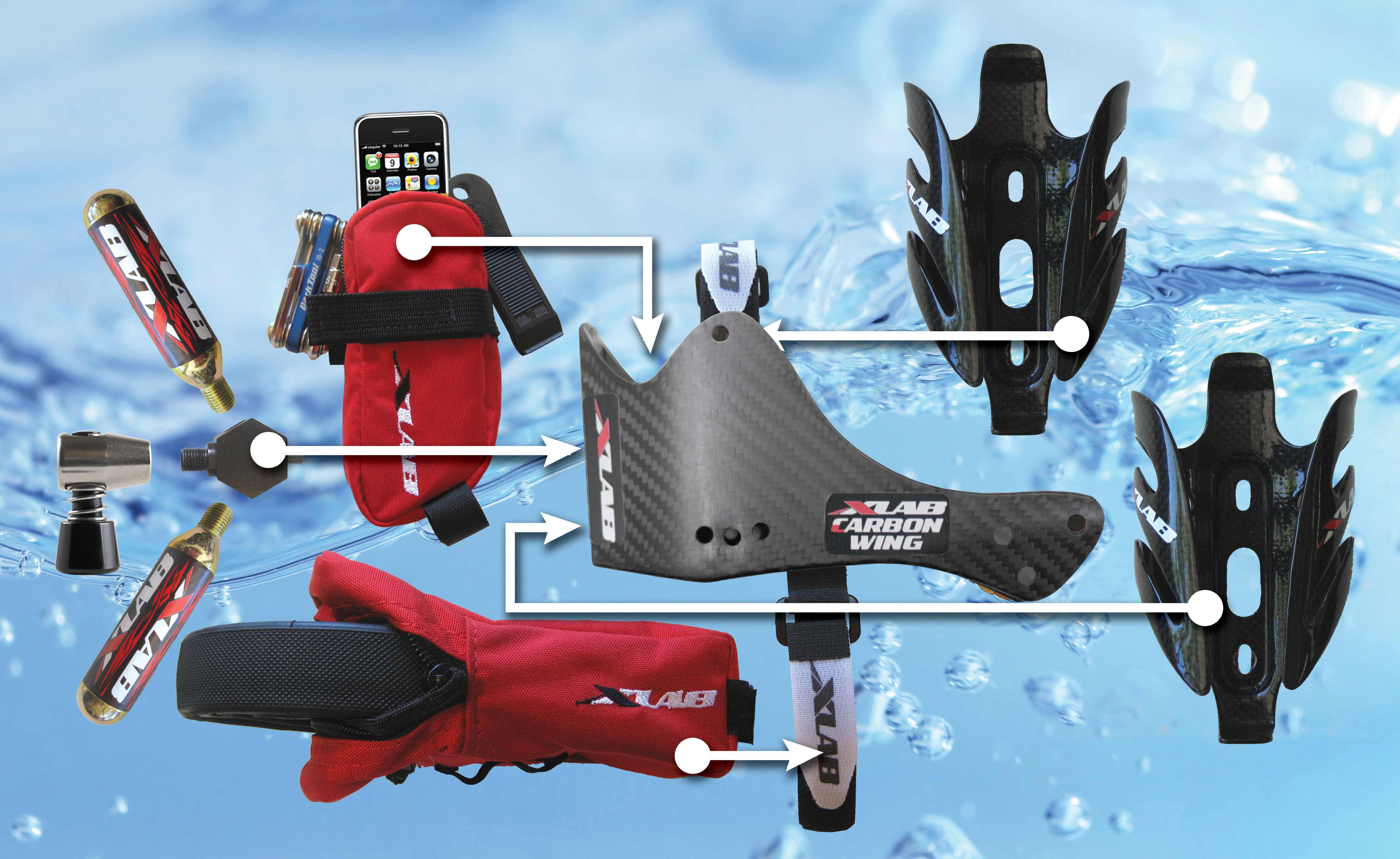

We wanted the next generation of carriers to solve the problem of storing keys, cell phones, cash, tire levers, and other essential items. These and other items can be stored in the XLAB MINI BAG which drops vertically and easily into the integrated compartment and is secured by the top X-STRAP.

As you can see, you have two choices for storing your CO2 cartridges and NANOFLATOR, or XLAB SPEED CHUCK on the rear of the CARBON WING, using the optional hexagonal X-NUT or in the XLAB MINI BAG.

Tires and tubes are always an issue, so now you can attach them neatly under the CARBON WING inside the XLAB MEZZO BAG or XLAB MEGA BAG.

HydrationTop

With the CARBON WING you can use a single bottle cage on the rear or one on each side. XLAB recommends using either the GORILLA cage or the GORILLA XT cage for rear carriers.

Adjustable MountingTop

One of the key features invented by XLAB is the dual mounting holes for the saddle rail clamps. One position sets the bottle cages close to vertical and the other inclines the cages for rider preference. Because of its past success, we have kept the same feature in the XLAB CARBON WING for customizing the installation.

Bottom LineTop

The bottom line—simply the most versatile Hydration and Repair system carrier, complete with 2 straps and all mounting hardware. XLAB makes you faster – ask the Pros!

IncludesTop

  • CARBON WING chassis.
  • 1 Set XCW top and bottom straps.
  • All hardware and instructions.

OptionsTop

Cage: GORILLA Cage
Inflator Holder: X-NUT
CO2: CO2 Cartridge
Inflator: NANOFLATOR
Inflator: SPEED CHUCK
Bag: MINI BAG
Bag: MEZZO BAG
Bag: MEGA BAG

Installation InstructionsTop

MaterialTop

Carbon Fiber and proprietory composite matrix. We use the latest carbon fibre composite with a special lay-up and resins to provide the toughest carbon carrier with no twisting like other carbon hydration carriers on the market.

WeightTop

Without hardware the XLAB CARBON WING weighs only 55 grams.

WarrantyTop

LIMITED LIFETIME WARRANTY
Because of our engineering and testing for this product we give it a Limited Lifetime Warranty to the original owner.
